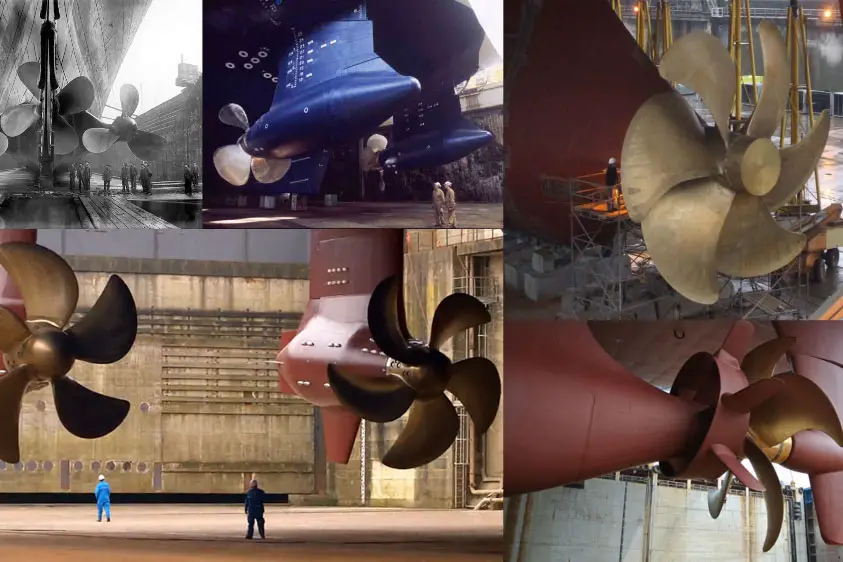

Largest Ship Propellers In The World

Largest Ship Propellers In The World

Humans are always fascinated by the biggest and the fastest. Ships which are some of the most mammoth structures made by us provide us plenty of opportunities to be awed. Have you wondered how these giants on the sea move? Propeller is the answer. And to move the biggest ships in the world, we need the largest ship propellers in the world!

Propellers are generally used to make an object move forward. The thrust produced by the rotation of propellers drives the ships or aircrafts.  Propellers are used in aircrafts and ships. In our childhood, we all have played with small boats having a small fan-like structure on the back and on rotating that fan our boat would move in the water. Now imagine, for making a huge ship move forward we need a huge propeller.

Largest Ship Propellers In The World

Here are some ships having the biggest propellers in the world:

1) MSC OSCAR

MSC Oscar's Propeller in Action
MSC Oscar’s Propeller in Action (Photo courtesy: MSC

MSC Oscar, built by Daewoo in South Korea, is one of the largest container ships of the world. The total length of this ship is 395 meters. The propeller consists of five blades, each blade measuring 10.5 meters. The main engine of this ship is MAN B&W 11S90ME-C, which enables the maximum speed of this container vessel is 22.8 knot. The 45,300 ton steel MSC Oscar cost US$140 million to build.

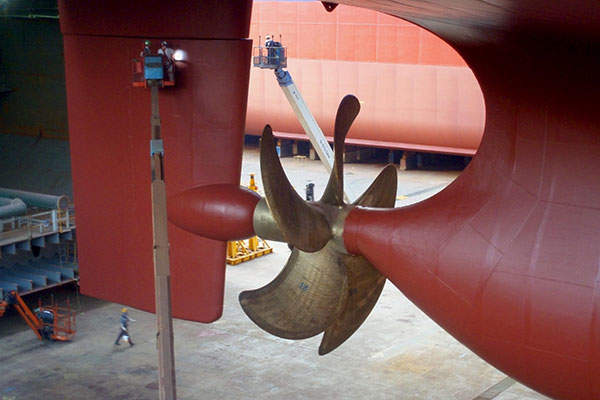

The Propeller of MSC Oscar in Action
The propeller of MSC Oscar

It measures a whopping 395 meters long, 59 meters wide with a draught of 16 meters which is equal to the size of four combined football fields. Obviously, such a massive ship needs the biggest propeller.

2) EMMA MAERSK

Emma Maersk Propeller
Emma Maersk Propeller ( Photo courtesy Maersk)

Before the manufacturing of Triple-E-Class ships, Emma Maersk was the biggest ship in the world. Being one of the oldest and largest ship containers (1302 feet long and 207 feet wide), Emma Maersk has one of the world’s largest ship propellers. This propeller, having a diameter of 9.6 meters and weighing 130 tons, is owned by A. P. Moller-Maersk Group. It is a six-blade propeller made of an alloy of copper, aluminum, nickel, iron, and manganese.

Emma Maersk Propeller In The Shipyard ( Photo courtesy Maersk)
Emma Maersk Propeller In The Shipyard ( Photo courtesy Maersk)

Emma Maersk has Wartsila-Sulzer 14RTFLEX96-C 199,000 horsepower engine, the world’s largest single diesel unit, which burns 3,600 gallons of fuels per hour. This gives it a speed of about 31 knots.

Propeller made by MMG ( Photo courtesy Maersk)
Propeller made by MMG ( Photo courtesy Maersk)

3) MT FRONT CENTURY

This vessel is a Crude Oil Tanker, built-in 1998 by Hyundai Heavy Industries. The owner of this ship is Frontline Ltd. This ship is powered by MAN B&W-Hyundai 7S80MC engine. It has four-bladed key-less 6.46-meter pitch propeller with 9.7 meters of diameter.

4) MOL TRIUMPH

MOL Triumph Propeller
MOL Triumph Propeller (Image courtesy MOL)

This container ship was built by Samsung Heavy Industries in 2017 and it is one of the four ultra-large ships built for MOL of Japan. It has a high-efficiency propeller. It can give a maximum speed of 24 knots by driving a single five-bladed propeller of the 10-meter pitch.

5) MV BARZAN

MV Barzan Propeller
MV Barzan Propeller (Photo Courtesy Technolog)

This ship was built in South Korea for the United Arab Shipping Company (UASC) by Hyundai Heavy Industries. It is 18,800TEU container vessel ship with propellers weighing about 110.2 tons. The propeller has a diameter of 10.4 meters.

6) ROYAL CARIBBEAN OASIS CLASS SHIPS

Royal Caribbean Azipods
Royal Caribbean Azipods (Photos Courtesy: Royal Caribbean)

These ships are one of the largest cruise ships in the world. The first two ships in this class are Ocean of the Seas and Allure of the Seas. Propellers in these ships have a diameter of 6 meters. The propulsion is provided with the help of three 26,800 hp  Azipods, ABB’s brands of electric azimuth thrusters.

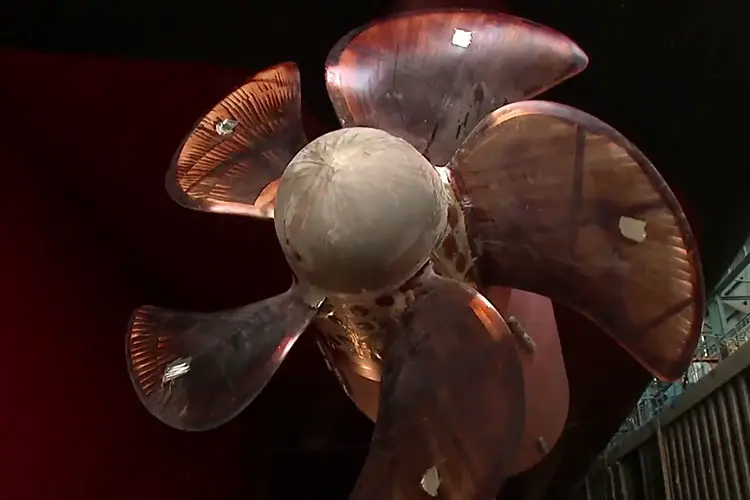

Royal Caribbean Propellers
Royal Caribbean Propellers

7) HAMBURG EXPRESS

This container vessel ship is owned by Hapag-Lloyd AG (a German-based transportation company). It is a 13,177 TEU container vessel built-in 2012. Its propeller is six-bladed. With a diameter of about 9.1 meters and weight of 101.5, this propeller is one of the largest propellers of the world.

8) TITANIC

Titanic's Propeller
Titanic’s Propeller

We all know the story of Titanic of how the biggest ship of its time sank after it struck an iceberg. There were three propellers in this ship weighing 38 tons each. Each propeller was operated using separate engines. The propellers measured 7.2 meters. The propellers were made of bronze.

9) SEAWISE GIANT

Seawise Giant was the longest ship ever built. It was a ULCC supertanker, twice as big as titanic. This ship was sunk during the Iran-Iraq war and was named Happy Giant after repairing. The ship had five-bladed propellers, weighing 50 tons, with a diameter of 9.14 meters.

10) QUEEN ELIZABETH 2

Queen Elizabeth 2 Propeller
Queen Elizabeth 2 Propeller (Photo courtesy QE2)

Queen Elizabeth 2 is a floating hotel and retired ocean liner which was built for Cunard Line. Since 2018, the ship has been operating as a floating hotel in Dubai.

QE2 has two huge variable pitch propellers each having a diameter of 22 feet and weighing 43 tons. The propellers are fitted with “Grim Wheels”. These are free spinning blades that are fitted behind the main propellers. This design was used for recovering the propeller thrust and reducing fuel consumption.

11) PALMER

Nathaniel Palmer Ship Propeller
Nathaniel Palmer Ship Propeller

Icebreaker, Nathaniel B. Palmer, is a ship made for the navigation through the ice-covered water and is mainly used for the research purposes. For making a ship to move through the ice-covered water propeller with high strength are needed. Therefore, the propellers of this ship are made up of a sturdy alloy.

This ship has two four-bladed propellers that are about 4 meters long.

12) ELATION

Elation Propeller
Elation Propeller

It is a Fantasy-class cruise ship owned by Carnival Cruise Line. Its service speed is about 22.3kt. It is the world’s first to use a unique electric azimuthing Azipod propulsion system in which ship is pulled rather than being pushed by the propeller. Elation has two 14MW Azipod propulsion units.

13) BISMARCK

Bismark's Propeller
Bismark’s Propeller

Bismarck was a battleship built for Nazi Germany’s Kriegsmarine before World War II. The ship had three manganese bronze propellers each having its own engine. Each propeller had three blades. The diameter of the propellers was 4.7 meters and the volume was a 2.4-meter cube.

This huge German battleship was sunk on 27 May 1941.

So, these were some of the biggest propellers in the world.
